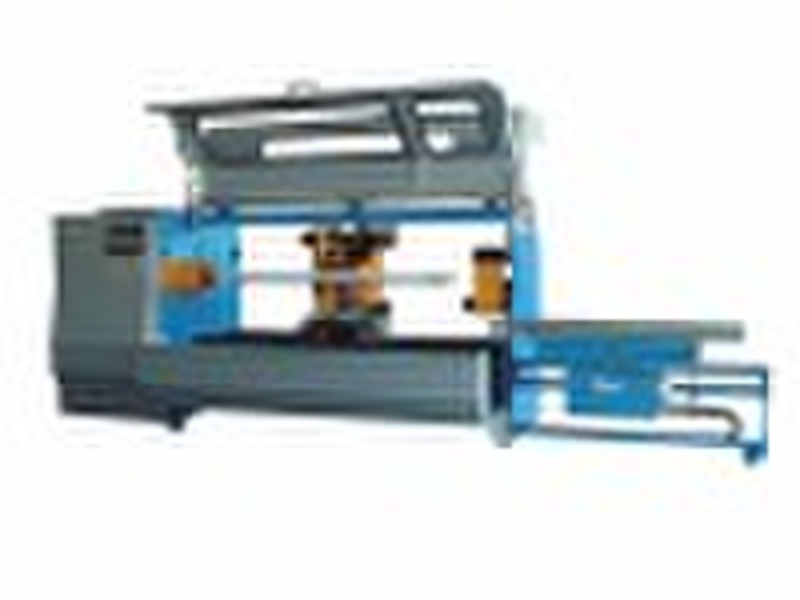

AT-708 Single Shaft slitting,cutting machine with

Features of AT-708 Cutting/slitting machine: 3servo automatic angle control, Auto grinder (engaged safety protecting cover) Main Technical Parameters:1.Length of Slitting Roll 1650 mm2.Range of slitting width 2-1600mm3.Inside Diameter of paper core 3"4.Maximum diameter of Slitting 400mm5.Voltage 380V 50HZ 3PHASE6.Working Idle Press source 5KG(customer supply) Valid Width1000mm/1300mm/1600mm Max. diameter material270mm (300 mm)Max. cutting speed35cuts/minInside diameter of paper core32-76.2mmMain motor5 HPBlade drive motor(Servo motor)3 HP x 6 PBlade diameter150-350 mmBlade speed360-1800 rpmOptional Parts:1. Other Size Cutting Shaft: It can be made as per the required core I.D.2. Cutting Supporter: For supporting log roll when cutting core below 38mm.3. Air Type Cutting Shaft: To improve the cutting accuracy when the tolerance of paper core I.D is too big.4. Safety Cover: To protect operator during the production, this is compliant to the CE regulation.5. Special Introduction: This model has design of obverse/reverse type frame, 1 operator can use both machines for bulk production if set up 2 machines face to face.6. Sharpening Device: Grinding knife on the machine to save time for taking blade off.
