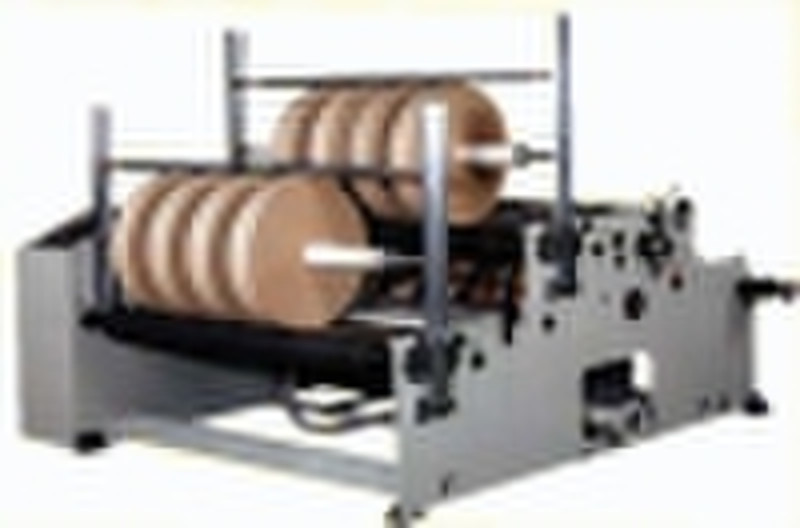

AT-609 Duplex Surface Slitter Rewinder Machine for

Features of AT-609 Duplex Surface Slitter Rewinder Machine: 1. All controls for this machine are located in a conveniently positioned centralized control panel. The control panel offers outstanding control and features, such major functions as two-step length counting with LED display, tension setting, motor speed meter, speed setting, waste material switch 2. This brake brings the machine to a complete stop. No tolerance is caused by running inertia. It provides complete uniformity and accuracy of tension control 3. Top and bottom slitting knives: the top slitting knives are adjustable, fully eliminating the problem of burrs, and the bottom knives are fixed. The top and bottom knives design makes this unit especially suitable for slitting products with poor or uneven tension. The design creates a smooth, side surface finish to the product 4. Pneumatic unwinding shaft: this 3" diameter, pneumatic shaft allows quick and easy loading of material, greatly improving productivity Main technical parameters: 1. Length width: 1,400mm 2. Maximum diameter of unwinding: 1,000mm 3. Range of slitting width: 25-1,350mm 4. Slitting speed: 180m/min
