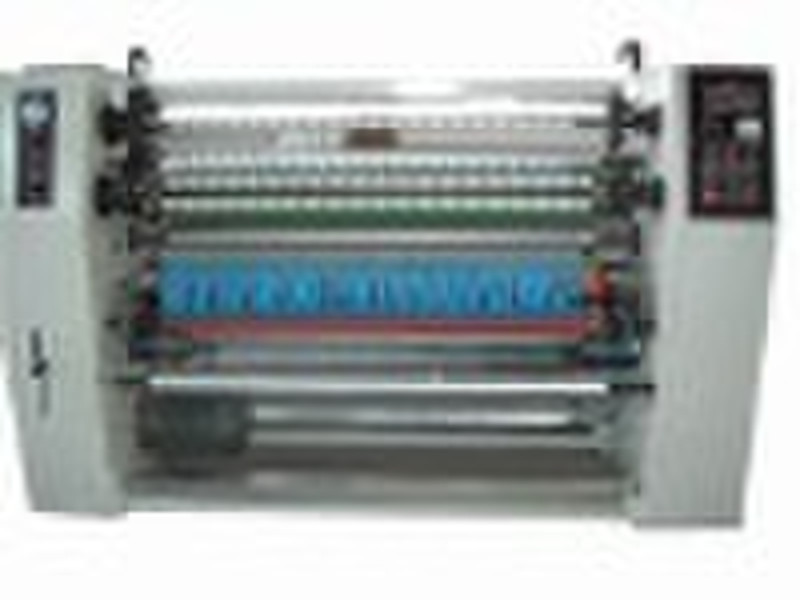

AT-605 Sore cut slitter rewinder machine for stati

FEATURES of AT-605 Sore cut slitter rewinder machine Centralized control panel: All operation controls. For this machine are centralized in a control panel. Three-step length setting: This length setting provides extremely smooth rewinding operation to gives accurate rewinding length. Automatic shaft change: Once the rewinding operation is accomplished, the machine will automatically perform shaft changes for convenient and efficient operations. Crowed stretch roll: The stretch roll is specially designed with a crowned shape for accurate tape tracking and proper tension control that completely eliminates material wrinkling. Pneumatic knives: This unit is fitted with 3" pneumatic knives,permitting the slitting of a variety of topes. The knife positions can be adjusted in left/right directions and the pressure of the pneumatic knives can be adjusted to suit tape material variation. Keep noise to minimum: The jumbo roll's pressure roll reduces noise to a minimum while in operation. MAIN TECHNICAL PARAMETERS: Length of roll 1100 mm Max. diameter of unwinding 800 mm Slitting machine 12-1020 mm Diameter of rewinding 120 mm(1" tube) 150 mm(3" tube) Diameter of paper core 25.4-76.2 mm Machine speed 0-180 M/min Motor 5 HP
